FEMTOsecond LASER

Turning of contact pins (wires, bars and tubes) for semiconductors testing industry

In the semiconductor testing industry, contact pins—comprising wires, bars, and tubes—must embody precision and durability. They ensure consistent electrical connections, withstand rapid testing cycles, and protect sensitive semiconductor devices. Every nuance matters, as even slight deviations can impact test accuracy or cause damage.

Contact pins (wires, bars and tubes) turning appliation overview

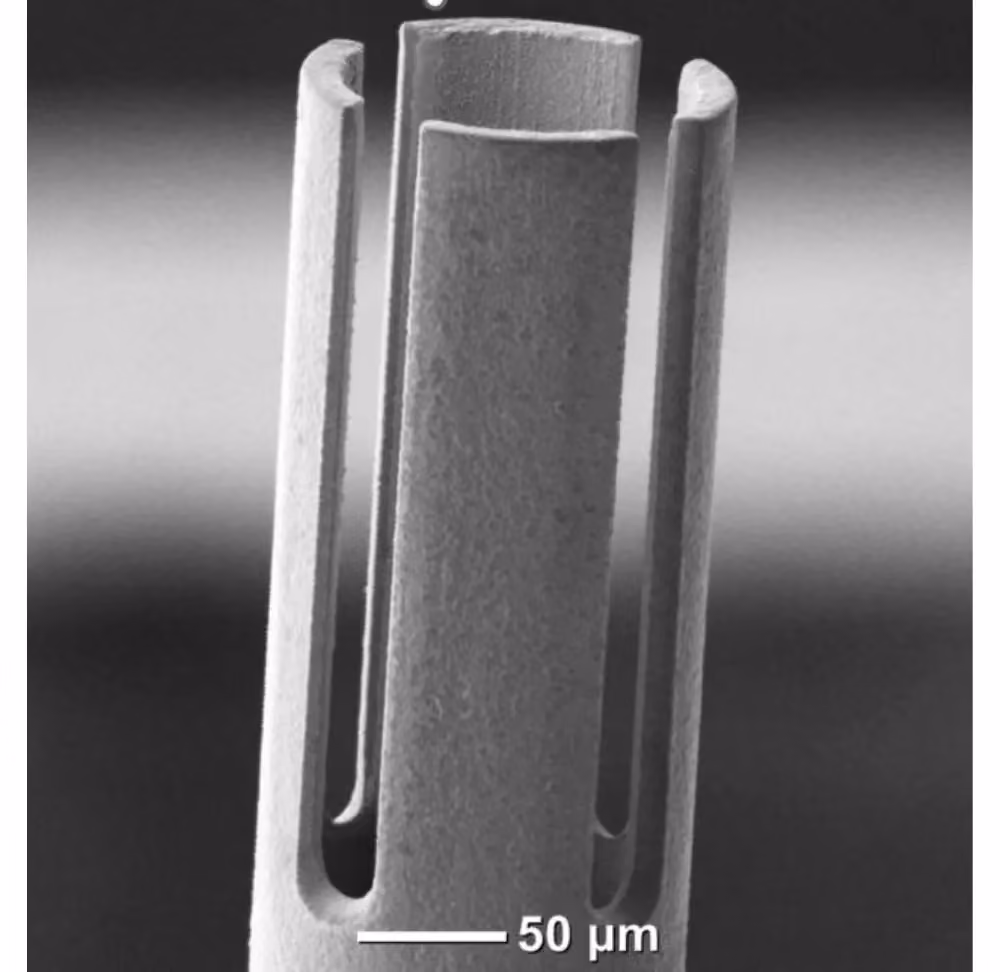

The key challenge in turning and micro-machining contact pins (wires, bars, and tubes) for the semiconductor testing industry lies in achieving microscopic precision while ensuring optimal electrical performance. These pins must be meticulously crafted to maintain consistent dimensions, intricate geometries, and exceptional surface finishes, all while guaranteeing reliable connectivity for accurate semiconductor testing.

Contact pins (wires, bars and tubes) turning results and achievements

No items found.

You currently have a contact pins, wires, bars or tubes turning project and you would like to know more about what we could achieve together?

Give us some more details!

FEMTOsecond LASER technology to perform these results

The FEMTOsecond LASER technology is a perfect match for all industries requiring the highest precision without compromising quality and productivity.

Miniaturized components are used in all kind of devices. Several applications – e.g. in the electronics or MedTech world – are not imaginable without very small and tiny parts. Thus, this requires new ways to produce and manufacture these parts. With FEMTO LASER μ-machining there are various processes possible like drilling, cutting and turning. It's compatible with almost all materials that are otherwise very difficult to machine with conventional tools.

With each FEMTOsecond LASER pulse that hits the work-piece, a small amount of material immediately vaporizes. The material removal occurs in a controlled manner leading to no damage, burrs or any negative influences to the material integrity.

Your benefits:

  • FEMTOsecond Laser source < 300 fs
  • Highest level of accuracy and productivity
  • Stable and repeatable quality
  • Cold ablation keeping material integrity (no HAZ)
  • Proven performance in 24/7 industrial environment

Make it possible with the FEMTO machine

FEMTOsecond LASER machines provide advanced µ-machining solutions for high-tech production. It ensures impeccable surface smoothness and precise machining without thermal residue.
