Mechanical micro-machining

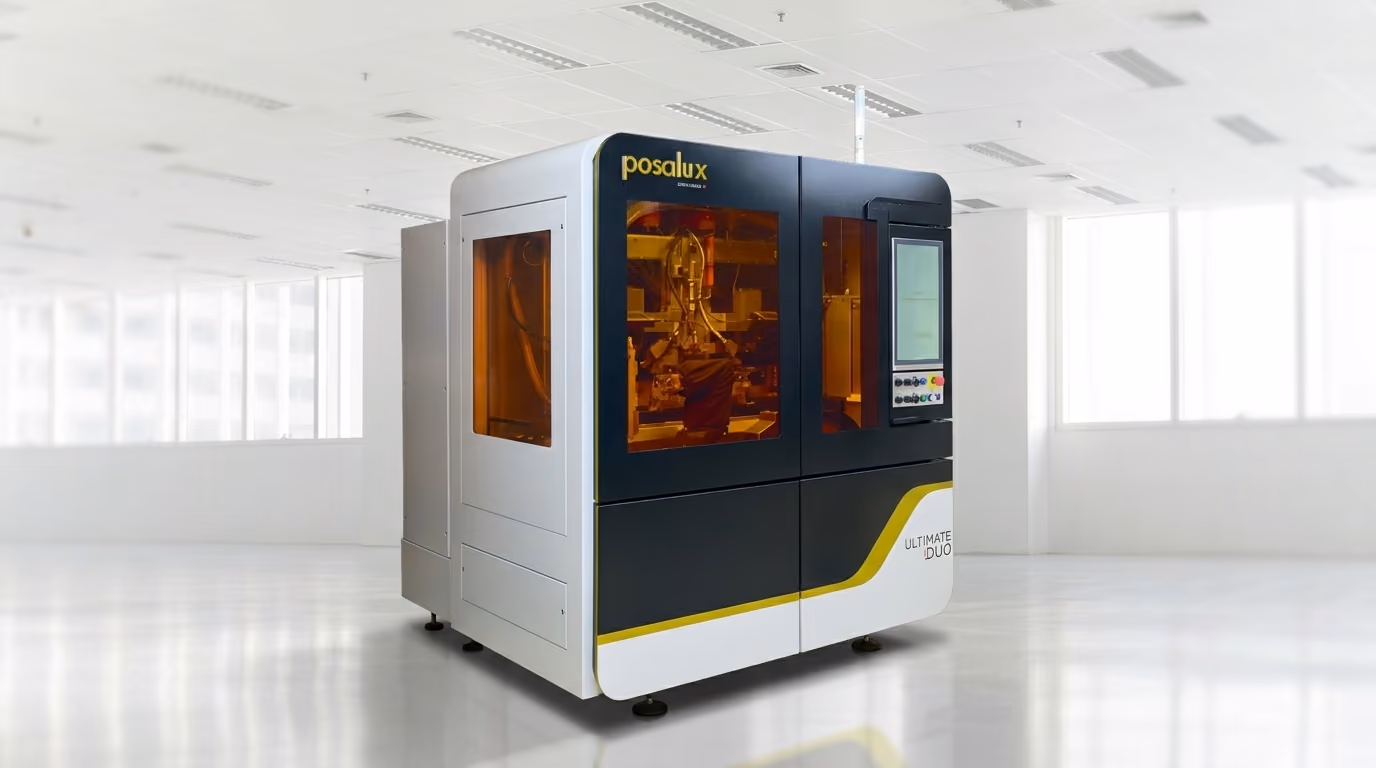

ULTIMATE DUO

The unique advanced mechanical micromachining solution

Micromachining on both sides of a workpiece in one operation

The ULTIMATE DUO is an innovative, fully-automated, 4 axis micro machining center for high speed drilling and milling of micro components (max. part size 80 x 80 x 10 mm). The innovation lies in the fact that it is now possible to machine a workpiece on both sides in a single operation. The miniaturization concept of the ULTIMATE allows to integrate up to two 4 axis machining centers OR milling centers into one modular work cell. The ULTIMATE is designed to offer:

‍

High stiffness
High dynamic
High productivity
High accuracy
Floor space reduction
Low power consumption

Technical data

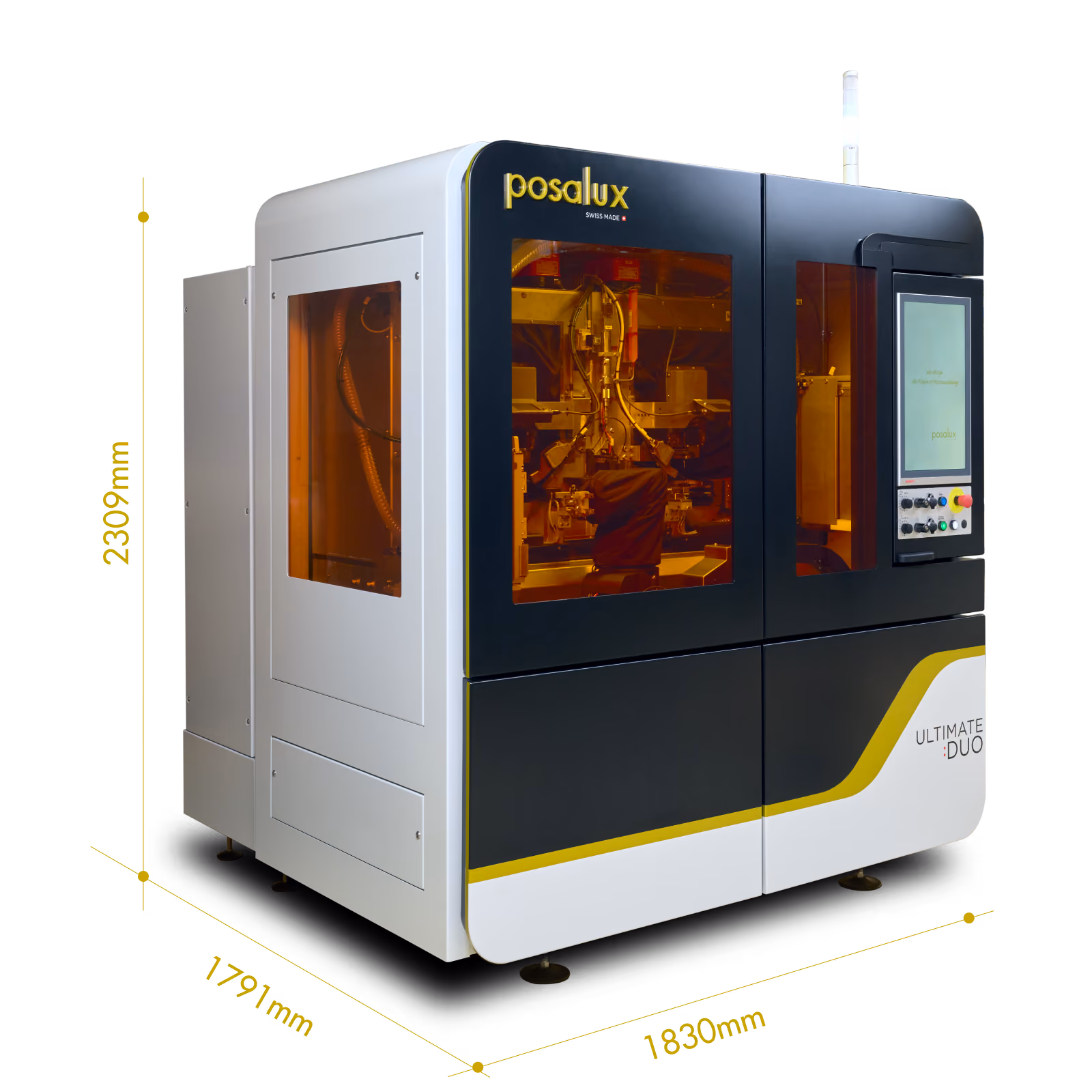

The ULTIMATE DUO machine

Increases the productivity by up to 300%
Machining on both sides of the socket in one operation
Increases the tool life by up to 200%
Floor space saving of 80%
Electrical energy savings of 80% or more
Minimal temperature influence due to 80% less power consumption
Dry process
Fully automated solution
Tool magazine capacity of 120 toolholders

Advanced µ-machining of test sockets with ULTIMATE DUO

In the electronics testing industry, the ULTIMATE DUO demonstrates outstanding capabilities in the micromachine of test sockets:

‍

Milling of round holes Ø 300 μm with pitch 350 μm in Torlon and Vespel material, thickness 500 μm and CT 0.6 sec
Countersunk step hole Ø 3.0 mm depth 1 mm and Ø 2.5 mm depth 0.8 mm in Torlon material
Step holes Ø 400 μm down to 650 μm with pitch 750 μm and through holes Ø 200 μm depth 650 μm in Vespel material
