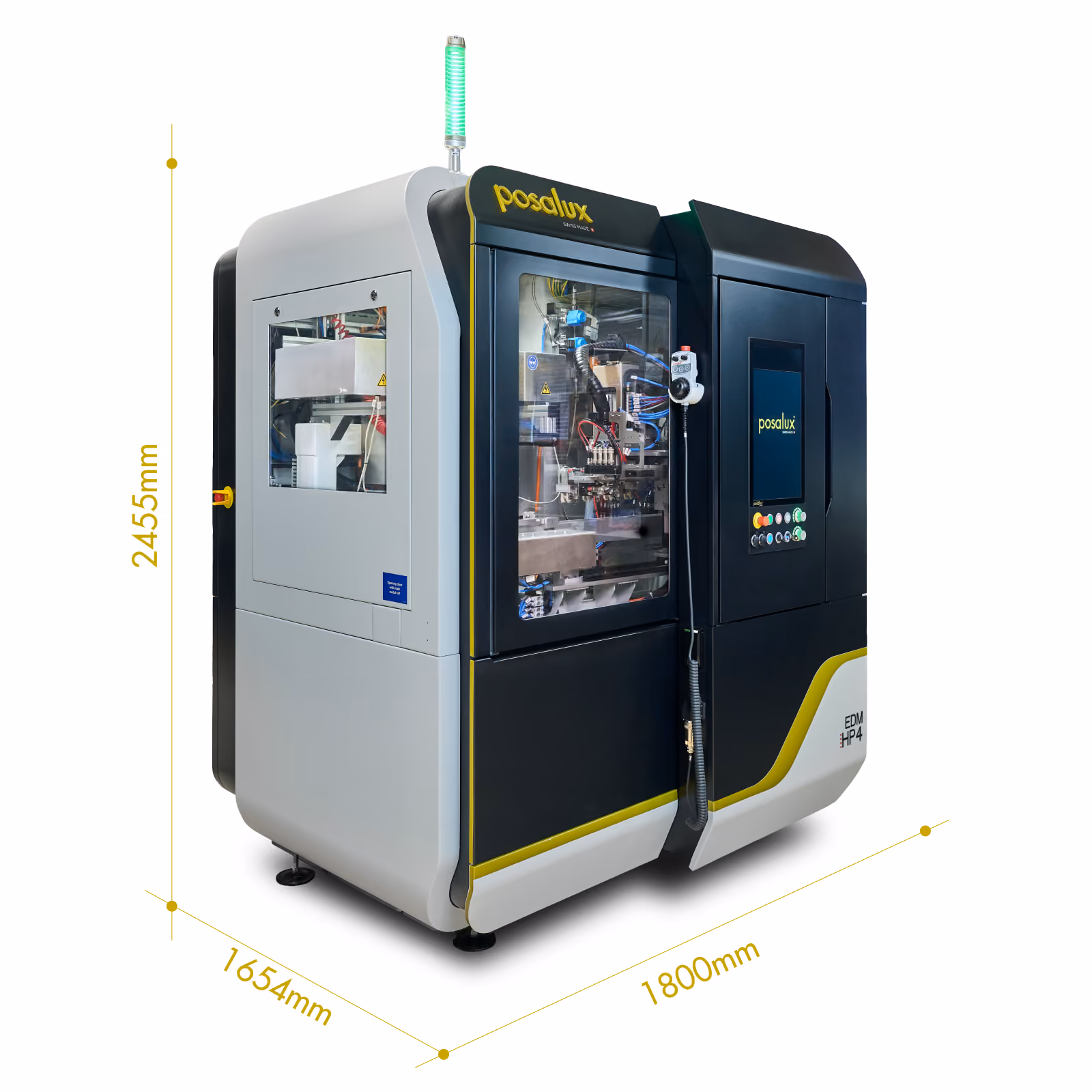

Sustain Mass Production with the EDM HP

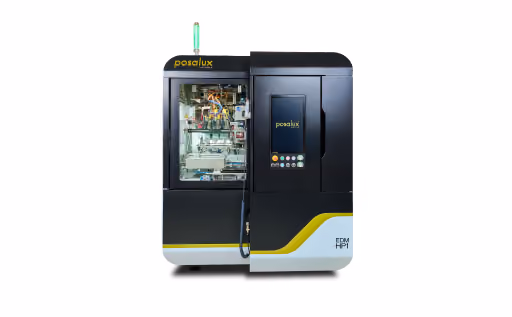

The EDM machine range micromachines parts made of conductive materials with short cycle times and high productivity.
Characteristics
- 5 axis mass production CNC machine
- Dedicated to drilling and routing process in hard materials up to 67 HRC / 900 HV
- Process stability allowing high productivity
- High positioning accuracy
- Easy maintenance
- Specific solutions for automatic loading and unloading of the parts
- Compact water deionization system
- Sinumerik One CNC controller
The process is based on the electro-erosion principle. Material is removed from the workpiece by a series of rapidly recurring current discharges between electrode and anode, separated by a dielectric liquid and subject to an electric voltage. One of the electrodes is called the tool-electrode, or simply the “electrode”, while the other is called the anode, or “workpiece.”
In order to machine high quality micro holes the Posalux EDM machines have a tilting head with deformation by pressure that allows to control the diameter and the shape of the hole, resulting in a run-out of the electrode. The electrode turns on a decentered axis, giving two different gaps, one where sparks erode the material and another, bigger one, allowing a better flushing of eroded materials. In combination with CNC driven axis and a high-speed interface to communicate with the micro EDM generator, perfect micro holes are the result.

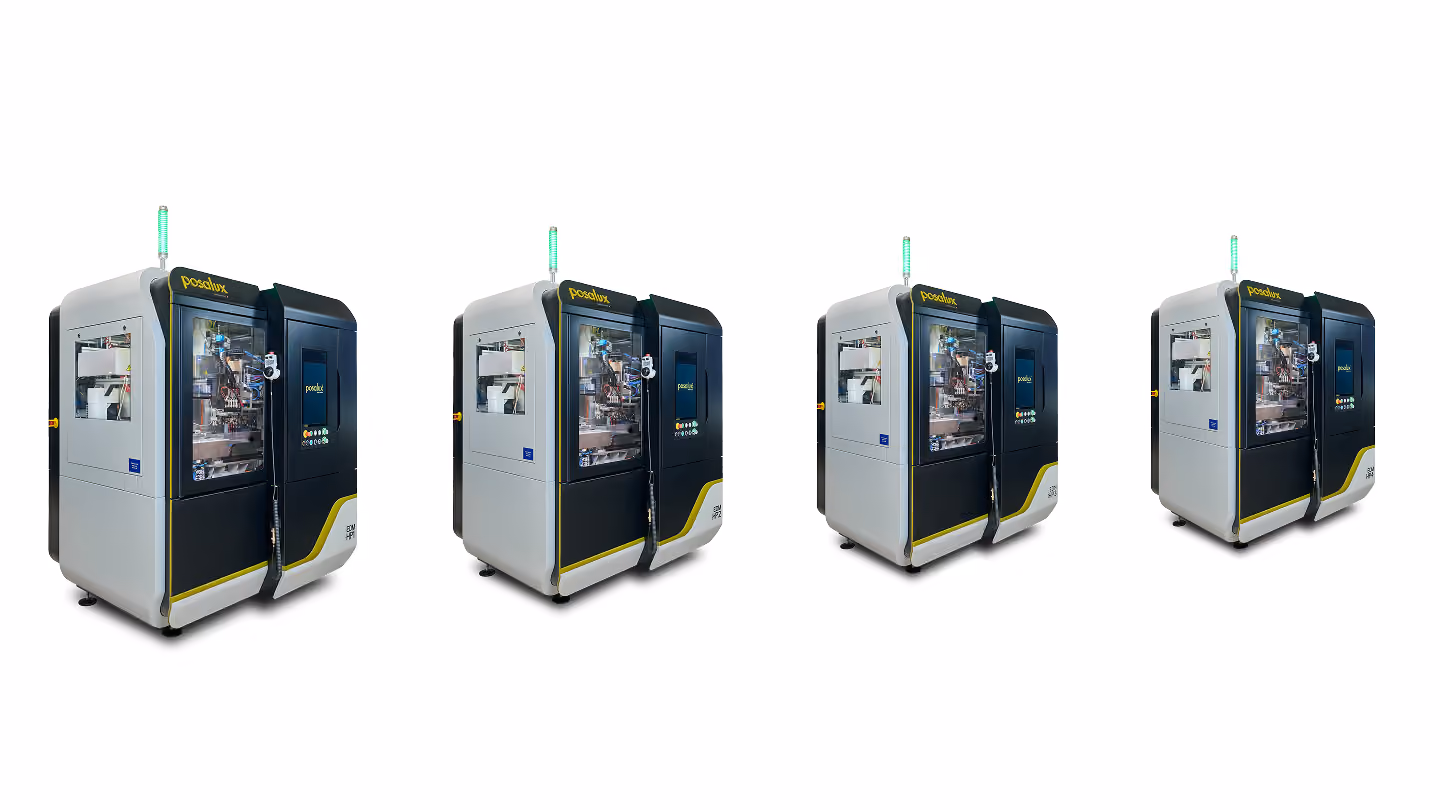

Modularity
Be inspired by the applications that can be performed with this series of micro-machining machines.
Drilling of GDI shim plate for the automotive industry
Stephole drilling of GDI valve seats for the automotive industry
Spray hole drilling in diesel injection nozzle for the automotive industry
